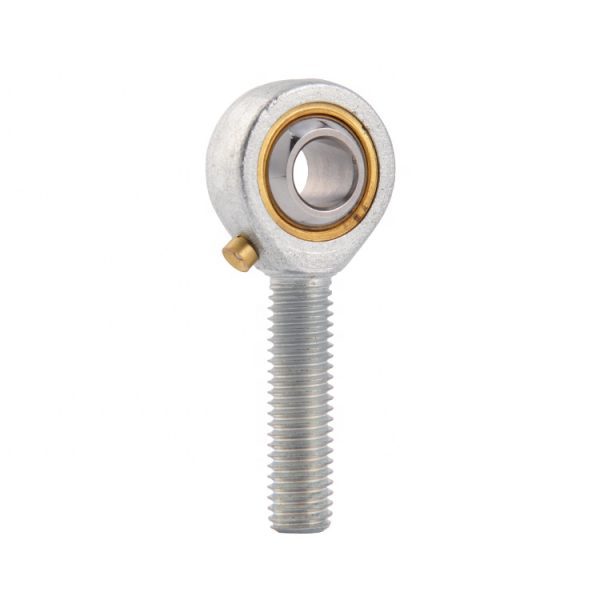

TH High Quality 10mm Metric Male Threaded POS10 Rod End Bearing for Rail Transportation

$1.36

x
SKU: d9d4f495e875 Category:



Product Description



Bearing No. Dimensions(mm) Ball
dia		 a0
mis.
angle		 Load ratings
(KN)		 weight
≈Kg
d
H7		 B C1 d1 d2 d3-6g h L1 L2 Dynamic Static
POS3 3 6 4.5 5.1 12 M3 26 15 32 7.93 14 1.5 1.8 0.006
POS4 4 7 5.25 6.5 14 M4 30 19 37 9.52 13 2.0 2.9 0.011
POS5 5 8 6 7.7 16 M5 33 20 41 11.11 13 2.5 3.5 0.012
POS6 6 9 6.75 8.9 18 M6 36 22 45 12.7 13 3.2 4.8 0.019
POS8 8 12 9 10.3 22 M8 42 25 53 15.87 14 5.4 8.9 0.032
POS10 10 14 10.5 12.9 26 M10 48 29 61 19.05 13 7.5 12.5 0.054
POS10FI 10 14 10.5 12.9 26 M10x1.25 48 29 61 19.05 13 7.5 12.5 0.054
POS12 12 16 12 15.4 30 M12 54 33 69 22.22 13 10 15.8 0.085
POS12/F2 12 16 12 15.4 30 M12x1.25 54 33 69 22.22 13 10 15.8 0.085
POS14 14 19 13.5 16.8 34 M14 60 36 77 25.4 16 13 22.1 0.126
POS14F1 14 19 13.5 16.8 34 M14X1.5 60 36 77 25.4 16 13 22.1 0.126
POS15 15 20 14 18.1 36 M14 63 38 81 26.98 16 14.5 23.6 0.186
POS16 16 21 15 19.3 38 M16 66 40 85 28.58 15 16 25.9 0.185
POS16F1 16 21 15 19.3 38 M16X1.5 66 40 85 28.58 15 16 25.9 0.185
POS17 17 22 16 20.6 40 M16X1.5 69 42 89 30.16 14 18 28.4 0.259
POS18 18 23 16.5 21.8 42 M18x1.5 72 44 93 31.75 15 19.5 30.8 0.260
POS20 20 25 18 24.3 46 M20X1.5 78 47 101 34.92 14 23 36.2 0.340
POS22 22 28 20 25.8 50 M22x1.5 84 51 109 38.1 15 29 42.6 0.435
POS25 25 31 22 29.5 60 M24x2 94 57 124 42.86 15 40.5 74.1 0.650
POS28 28 35 24 32.29 66 M27x2 103 62 136 47.63 15 46.1 88.7 0.875
POS30 30 37 25 34.8 70 M30x2 110 66 145 50.8 17 54.3 94.0 1.070















OEM Service
