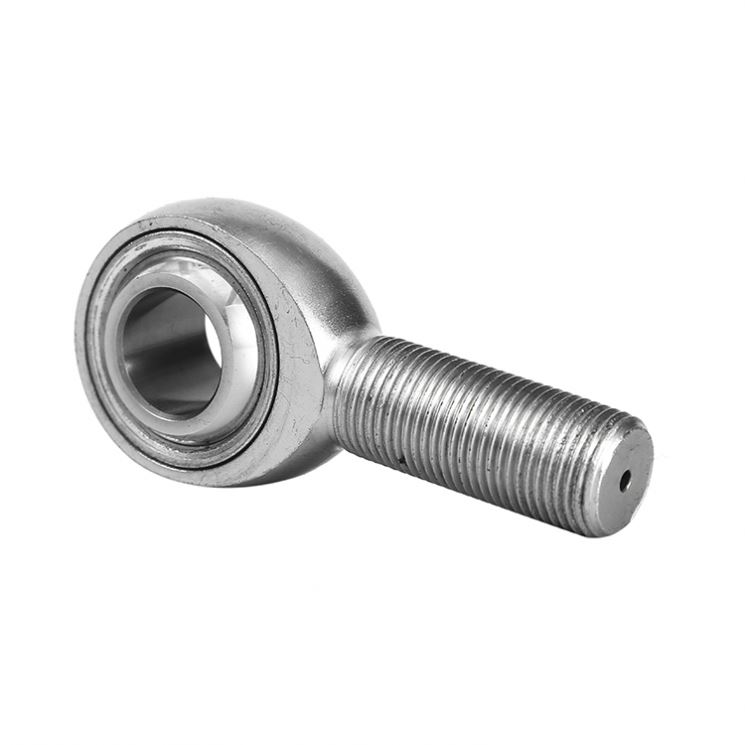

Product Description

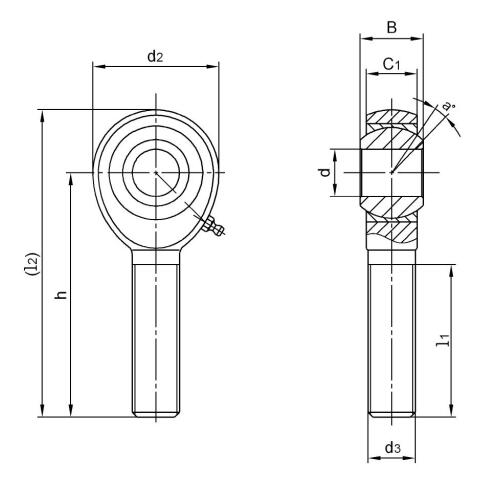

| Bearing No. | Dimensions(mm/inches) | Ball dia |
a° mis. angle |
Load ratings (KN) |
weight ≈kg |
|||||||
| d+0.038 -0 012 |
B | C1 | d2 | d3 UNF-2A |
h | L1 | (L2) | |||||
| JMX3T | 4.826 | 7.92 | 6.35 | 15.88 | 10-32 | 31.75 | 19.05 | 39.69 | 11.11 | 13 | 12.6 | 0.013 |
| JMX3T | 0.1900 | 0.312 | 0.250 | 0.625 | 10-32 | 1.250 | 0.750 | 1.562 | 0.437 | 13 | 12.6 | 0.013 |
| JMX4T | 6.35 | 9.53 | 7.14 | 19.05 | 1/4-28 | 39.67 | 25.4 | 49.2 | 12.7 | 16 | 23.4 | 0.018 |
| JMX4T | 0.2500 | 0.375 | 0.281 | 0.750 | 1/4-28 | 1.562 | 1.000 | 1.937 | 0.500 | 16 | 23.4 | 0.018 |
| JMX5T | 7.938 | 11.10 | 8.74 | 22.23 | 5/16-24 | 47.63 | 31.75 | 58.75 | 15.88 | 14 | 33.9 | 0.031 |
| JMX5T | 0.3125 | 0.437 | 0.344 | 0.875 | 5/16-24 | 1.875 | 1.250 | 2.312 | 0.625 | 14 | 33.9 | 0.031 |
| JMX6T | 9.525 | 12.7 | 10.31 | 25.4 | 3/8-24 | 49.22 | 31.75 | 61.92 | 18.26 | 12 | 42.4 | 0.049 |
| JMX6T | 0.3750 | 0.500 | 0.406 | 1.000 | 3/8-24 | 1.938 | 1.250 | 2.437 | 0.719 | 12 | 42.4 | 0.049 |
| JMX7T | 11.112 | 14.27 | 11.1 | 28.58 | 7/16-20 | 53.98 | 34.93 | 68.27 | 20.62 | 14 | 45.7 | 0.072 |
| JMX7T | 0.4375 | 0.562 | 0.437 | 1.125 | 7/16-20 | 2.125 | 1.375 | 2.678 | 0.812 | 14 | 45.7 | 0.072 |
| JMX8T | 12.7 | 15.88 | 12.7 | 33.32 | 1/2-20 | 61.92 | 38.1 | 78.58 | 23.8 | 12 | 72.2 | 0.113 |
| JMX8T | 0.5000 | 0.625 | 0.500 | 1.312 | 1/2-20 | 2.438 | 1.500 | 3.093 | 0.937 | 12 | 72.2 | 0.113 |

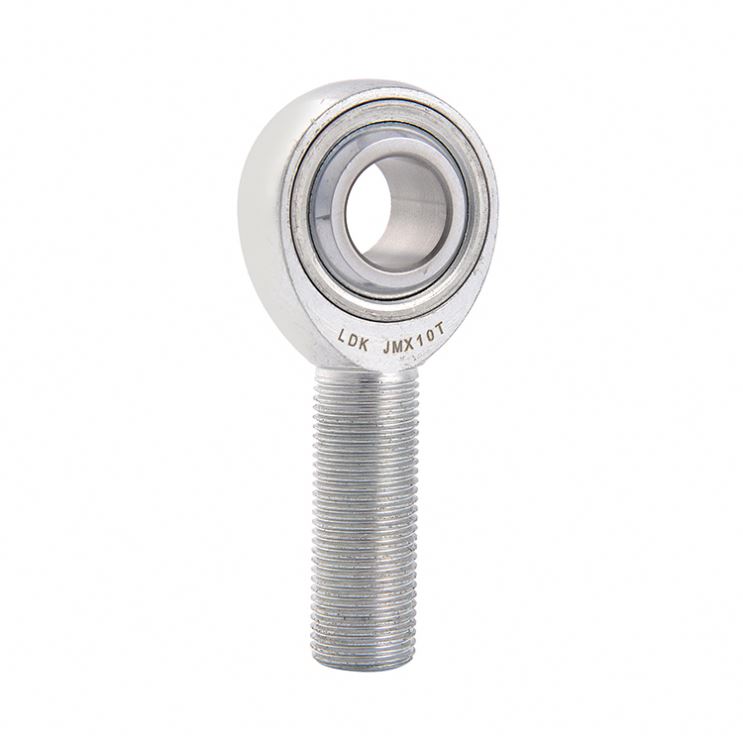

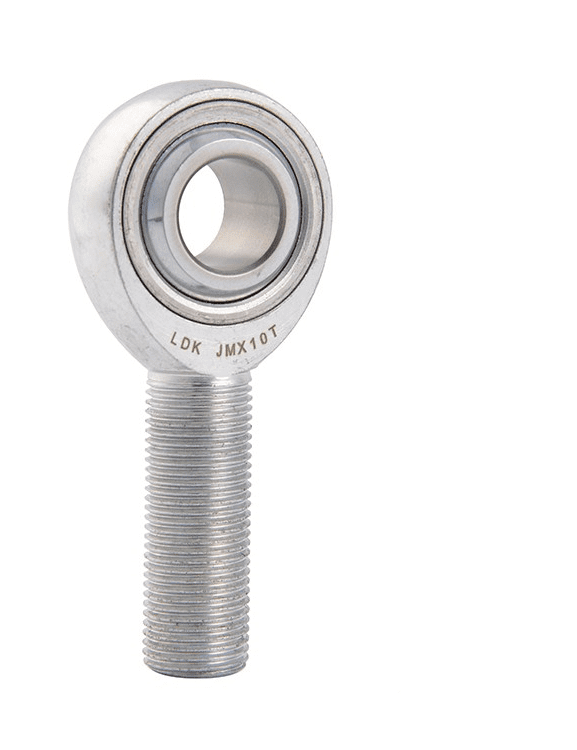

| JMX10T | 15.875 | 19.05 | 14.27 | 38.1 | 5/8-18 | 66.68 | 41.28 | 85.73 | 28.58 | 16 | 79.8 | 0.172 |
| JMX10T | 0.6250 | 0.750 | 0.562 | 1.500 | 5/8-18 | 2.625 | 1.625 | 3.375 | 1.125 | 16 | 79.8 | 0.172 |
| JMX12T | 19.05 | 22.23 | 17.45 | 44.45 | 3/4-16 | 73.02 | 44.45 | 95.25 | 33.33 | 14 | 124.9 | 0.272 |
| JMX12T | 0.7500 | 0.875 | 0.678 | 1.750 | 3/4-16 | 2.875 | 1.750 | 3.750 | 1.312 | 14 | 124.9 | 0.272 |
| JMX14T | 22.225 | 22.23 | 17.45 | 50.8 | 7/8-14 | 85.73 | 47.63 | 111.1 | 33.33 | 10 | 247.7 | 0.408 |
| JMX14T | 0.8750 | 0.875 | 0.687 | 2.000 | 7/8-14 | 3.375 | 1.875 | 4.375 | 1.312 | 10 | 247.7 | 0.408 |
| JMX16T | 25.4 | 34.93 | 25.4 | 69.85 | 5/4-12 | 104.78 | 53.98 | 139.7 | 47.62 | 14 | 476.7 | 1.241 |
| JMX16T | 1.0000 | 1.375 | 1.0000 | 2.750 | 5/4-12 | 4.125 | 2.125 | 5.500 | 1.875 | 14 | 476.7 | 1.241 |
| JMX16-1T | 25.4 | 34.93 | 25.4 | 69.85 | 1-14 | 104.78 | 53.98 | 139.7 | 47.62 | 14 | 476.7 | 1.117 |
| JMX16-1T | 1.0000 | 1.375 | 1.0000 | 2.750 | 1-14 | 4.125 | 2.125 | 5.500 | 1.875 | 14 | 476.7 | 1.117 |
Ball: AISI 52100 bearing Steel, Heat treated, HRC56 min;
Precision ground polished hard chromium plated;
Body: Steel alloy, Heat treated, Zinc plated, Chromate treated;
Race: Steel alloy, Heat treated, Zinc plated, Chromate treated;
Sliding contact surfaces: Steel/PTFE composite.
Notes: For grease fittings add “Z” to suffix.Example:JMX6Z.
For studs add “Y” to suffix.Example: JMX5Y.
Can supply rod ends with different pitch or accuracy of thread.
For left-hand thread, suffix “L” is added to bearing numbers. e.g.:JMXL12T 3/4-16L.
